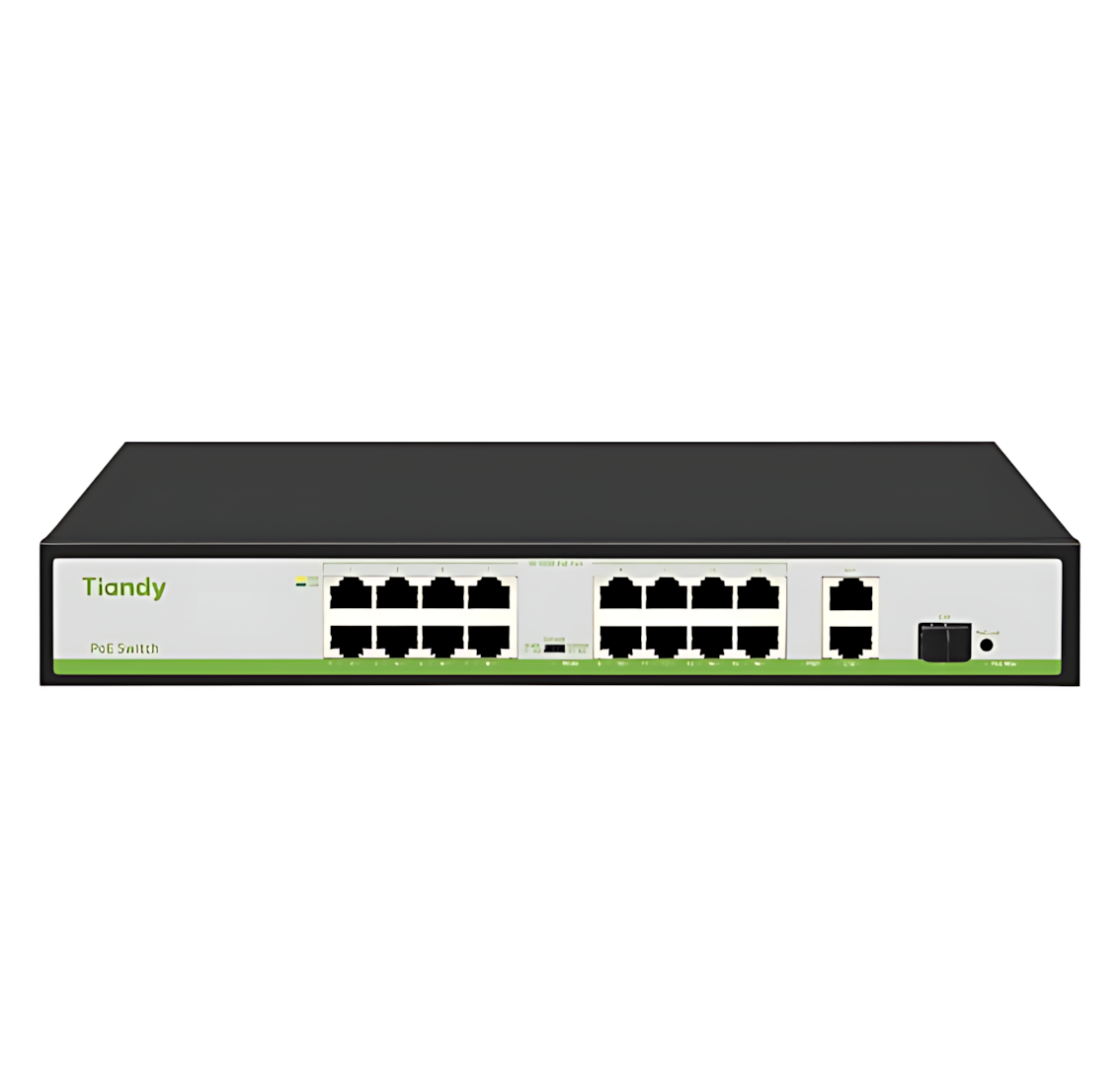

16 Port Poe switch

16 Port Poe switch

Switch TC-P3S019 Spec:2/M/HP – Switch

The TC-P3S019 Switch is a reliable and efficient networking solution designed for small to medium setups. With Power over Ethernet (PoE) support, it delivers both power and data through a single cable, simplifying installation for IP cameras, access points, and other PoE-enabled devices.

Compact and durable, this switch ensures stable high-speed data transmission while reducing clutter and extra wiring. Its plug-and-play design makes setup quick and hassle-free, while built-in protection features safeguard your connected devices against overloads and surges.

Ideal for CCTV systems, smart offices, and home networks, the PoE Switch is the perfect balance of performance, simplicity, and reliability.

DURABILITY
EASE OF USE
PERFORMANCE
VERSATILITY

Incl. of all taxes

Price: KSh14,500.00 KSh16,999.99
Product fullscreen view
Drag the magnifier around the image

Technical Specifications

No image specifications available.

No camera specifications available.

No lens specifications available.

No illuminator specifications available.

No compression specifications available.

No features available.

· Protocols Supported: IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3x (Flow control), IEEE802.3af (15.4W), IEEE802.3at (30W)
· POE Port Output Voltage: DC 52V
· POE Power Supply Core: 1/2+; 3/6-
· Network Medium:
 - 10Base-T: Cat3, 4, 5 or above UTP/STP (≤100m)
 - 100Base-TX: Cat5 or above UTP/STP (≤100m)
· Ethernet: 16 × 10/100Mbps PoE Ports, 2 × 10/100Mbps RJ45 Uplink Ports
· LED Indicators: Power (PWR), SW (DIP), Ports 1-10 (Link & Data), POE Max (Power)
· DIP Switch: VLAN (Port Isolation Mode), Default (Normal Mode), Extend (Link Extension Mode)
· Complies with IEEE 802.3, 802.3u, 802.3x standards
· Ethernet port supports 10/100Mbps adaptive
· Supports POE Priority (QOS): Ports 1 > 2 > 3 > 4 > 5 > 6 > 7 > 8
· Flow control: Full-duplex IEEE 802.3x, Half-duplex back pressure standard
· Supports Port Auto-flip (Auto MDI/MDIX)
· Store-and-forward switching
· Wire-speed switching on all ports
· Zero configuration for adaptive devices
· Panel indicator for status monitoring and failure diagnosis
· Port lightning surge protection: 4KV common mode (level C)
· Electrostatic ESD: Air 8KV, Contact 6KV (level C)
· Power: AC input 100-240V
· Product Dimensions: 200 × 118 × 44 mm
· Package Dimensions: 245 × 190 × 60 mm
· Product Net Weight: 0.68 kg
· Product Gross Weight: 0.98 kg
· Carton Dimensions: 520 × 320 × 400 mm
· Packing Quantity: 20 pcs
· Packing Weight: 20.6 kg
· Power Supply: 52V / 1.92A
· Mainboard Power: max 10W
· PoE Power: max 90W
· Working Temperature: -10℃ ~ 50℃
· Storage Temperature: -40℃ ~ 70℃
· Working Humidity: 10% ~ 90% non-condensing
· Storage Humidity: 5% ~ 95% non-condensing
